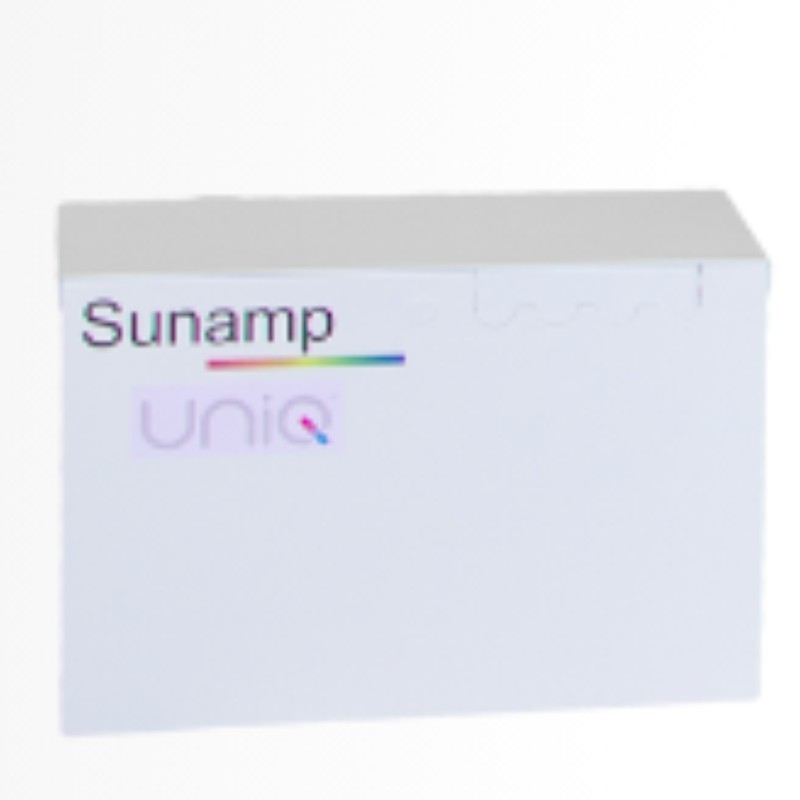

Sunamp Thermino 70 ePV
ePV
Log in or register for trade discounts!
Quantity:BUY!
Thermino 70 ePV - Designed to produce domestic hot water by using grid electricity and surplus PV energy. It can be used as an alternative to a hot water storage tank, providing the same energy storage in a much smaller volume. The reduced size combined with the fact that the Sunamp does not need any venting allows for full flexibility in install location.
The Thermino 70 ePV would typically be installed in a studio apartment, or for off-grid applications in a caravan or boat.
Note, the Sunamp is very heavy:
- Tilting it beyond 45 degrees may damage the unit and void your warranty.
- Standard delivery is only to curbside, if you believe you may need assistance moving this into your property, especially upstairs, please contact about a tailor delivery service we can provide for Sunamps.
General Specifications
Product code
SGP-BAW-ATZ-1
Equivalent energy storage
3.2kW
Equivqlent hot water capacity
74L
Water available at 40°C
105L
Weight in use
79kg
Height
440mm
Width
365mm
Depth
575mm
Storage core warranty
10 years
Other parts warranty
2 years
Technical Specifications
Standing heat loss
20W
Energy efficiency rating
C
Recommended flow rate
6LPM
Minimum supply pressure
1.5 bar
Maximum supply pressure
10 bar
Annual electricity consumption
542kWh/annum
Power inputs:
Grid electricity
Solar Panels
Need a different combination? See other Sunamp options here.
