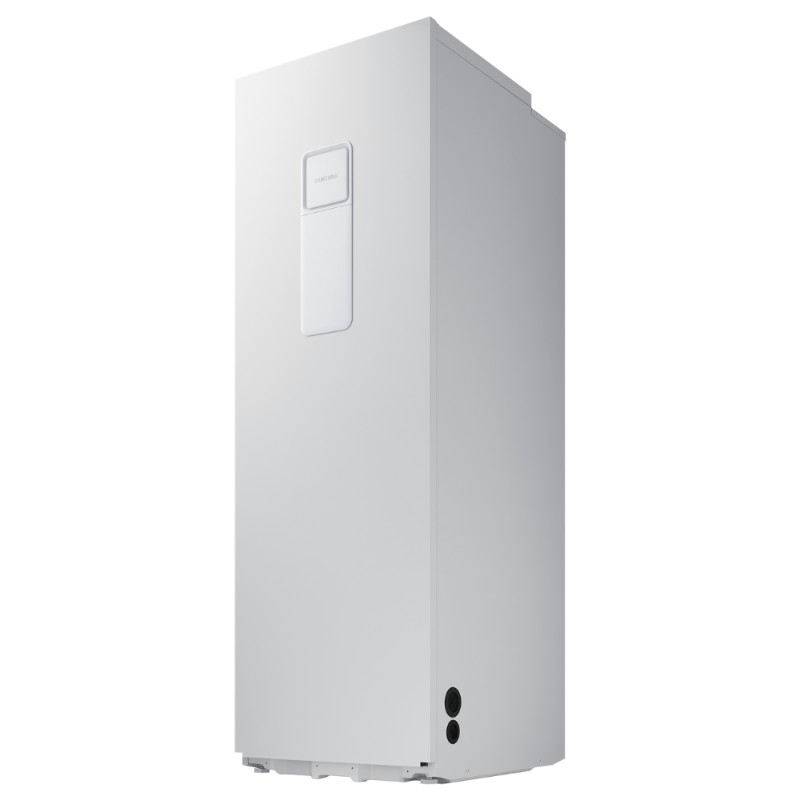

Samsung ClimateHub 1.5 DHW Tank for Monobloc type (R32 or R290) 1ph 260L Monotank with wifi
Climatehub1.5
Log in or register for trade discounts!
Quantity:BUY!

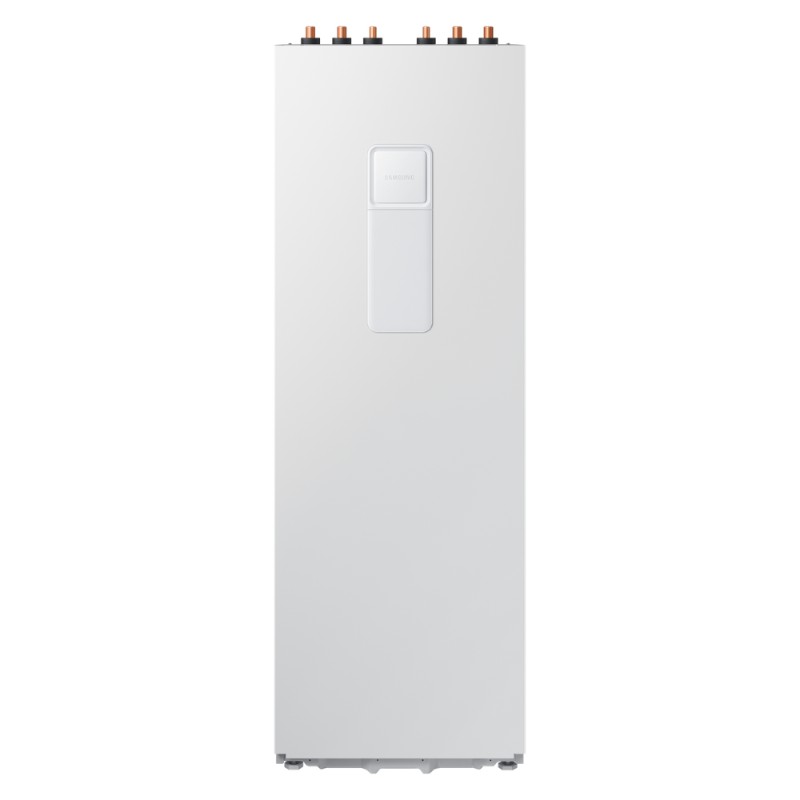

AE260CNWMEG - This ClimateHub model is supplied without a screen and includes a blanking plate. A control screen must be installed and is sold separately. A potable expansion vessel and inlet group valve are also required for the installation, and both are sold separately.

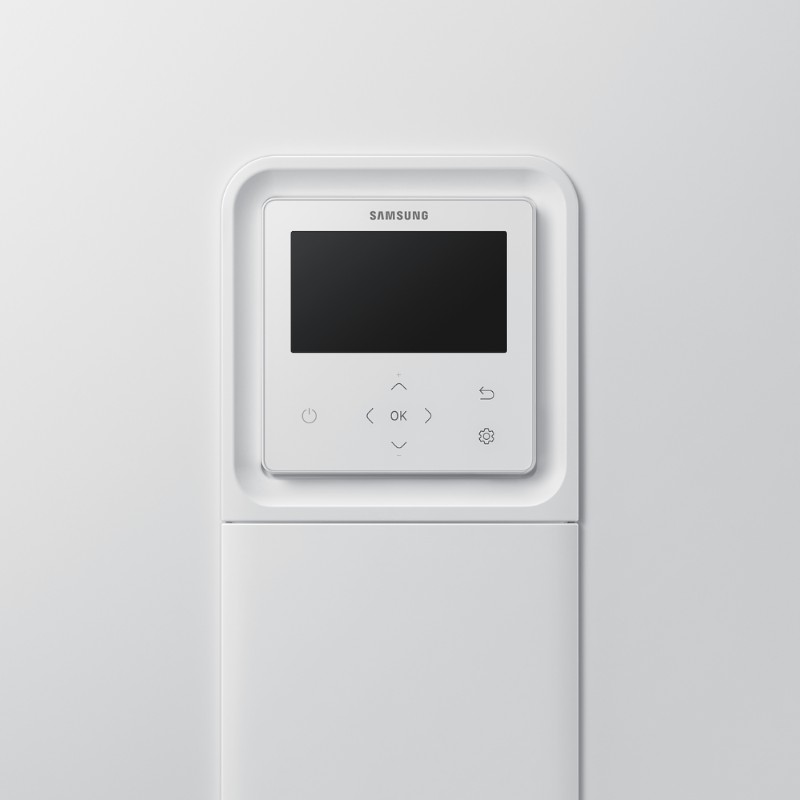

The controller used for this climatehub is the MWR-WW10N.
This climatehub is compatible with the Gen6 and Gen7 Samsung heat pumps and the HTQ.
The ClimateHub Mono units are easier to handle and require much less space, so they can be installed in many more places and are extremely simple to install, set up, and maintain. A compact and modular tank, the climatehub integrates a conventional hydro unit or control kit, a large hot water tank of either 200 or 260 litres with easy accessible pipework connections for quick installation.
Please refer to the manufacturer's instructions before installation.
Cylinder Specifications
Capacity
260L
Height
1844mm
Width
595mm
Depth
700mm
Gross Height
2000mm
Gross Width
700mm
Gross Depth
780mm
Net Weight
136kg
Gross Weight
148kg
Product Details
Product code
AE260CNWMEG
Heating Exp. Vessel
8L, Pre-charge gas: 0.1MPa, N2, BSPP 3/8"
Electric Heater
2000W
Power Source
1 Phase, 220-240V, 50Hz

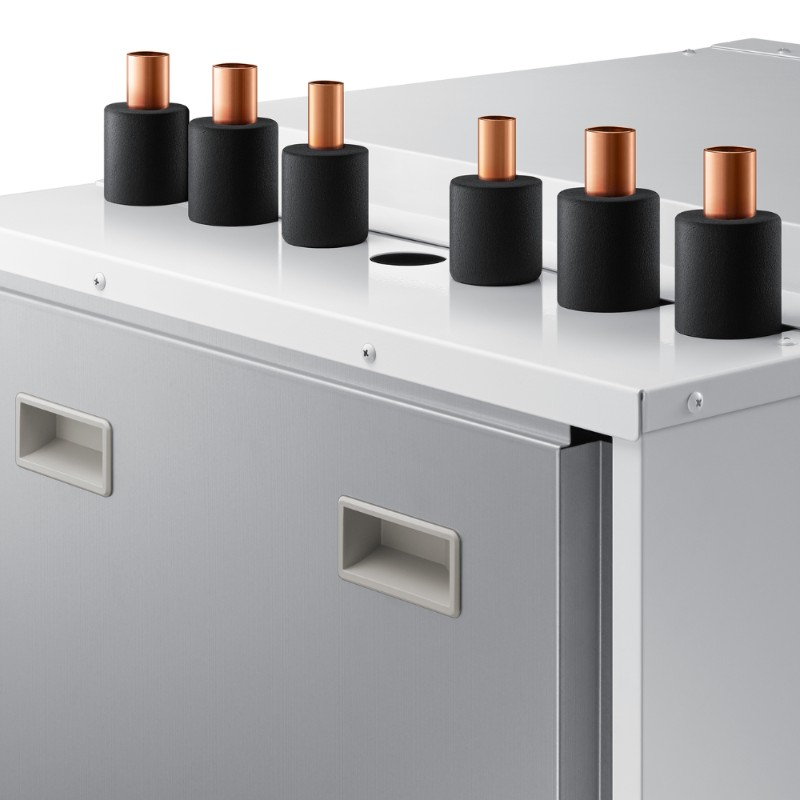

Plumbing Fittings
- Mono Outdoor Outlet 28mm
- Mono Outfoor Inlet 28mm
- Hot Water Outlet 22mm
- Secondary Return 22mm
- Cold Water Inlet 22mm
- Space Heating Outlet 28mm
- Space Heating Inlet 28mm
