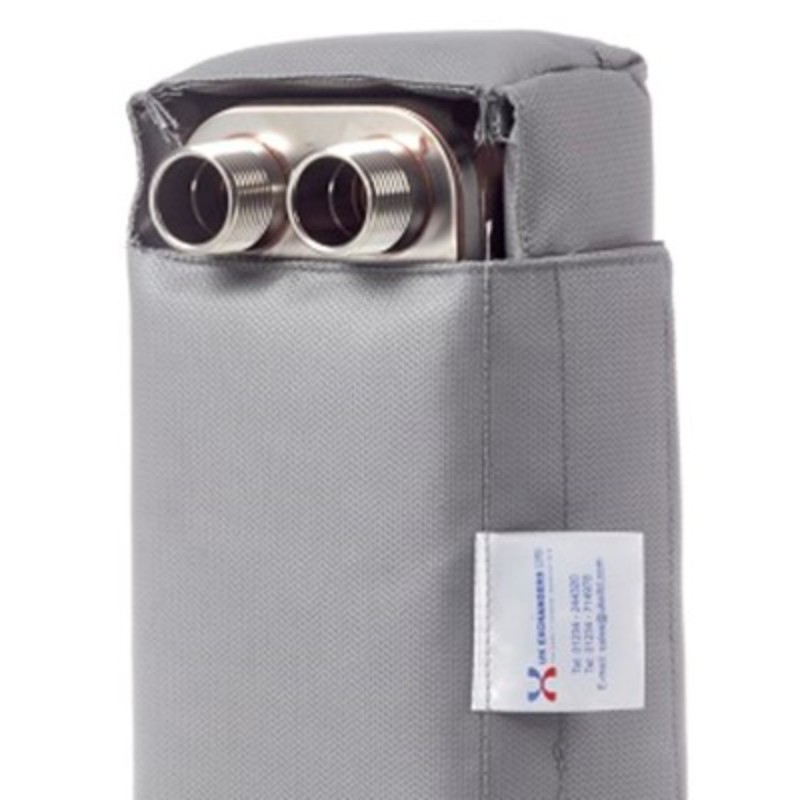

WRAS approved 16kW plate heat exchanger for retrofit to existing hot water cylinder for domestic hot water production. Supplied with fitted velcro insulating jacket.

1" BSP male connections.

Technical Information

• Product number UKE-BR050
• Number of plates 30
• Heat transfer area [m²] 0.714

• Brazing material Cu
• Certification type PED Art 4.3

• Dimensions (H x W x D) [mm] 306 x 250 x 106

• Empty weight [kg] 5.0

Side 1:

• Inlet/Outlet temperature [^oC] 60.0/55.0
• Flowrate [kg/s] 0.77
• Pressure drop [kPa] 19.5

Side 2:

• Inlet/Outlet temperature [^oC] 5.0/56.0
• Flowrate [kg/s] 0.08
• Pressure drop [kPa] 0.2
