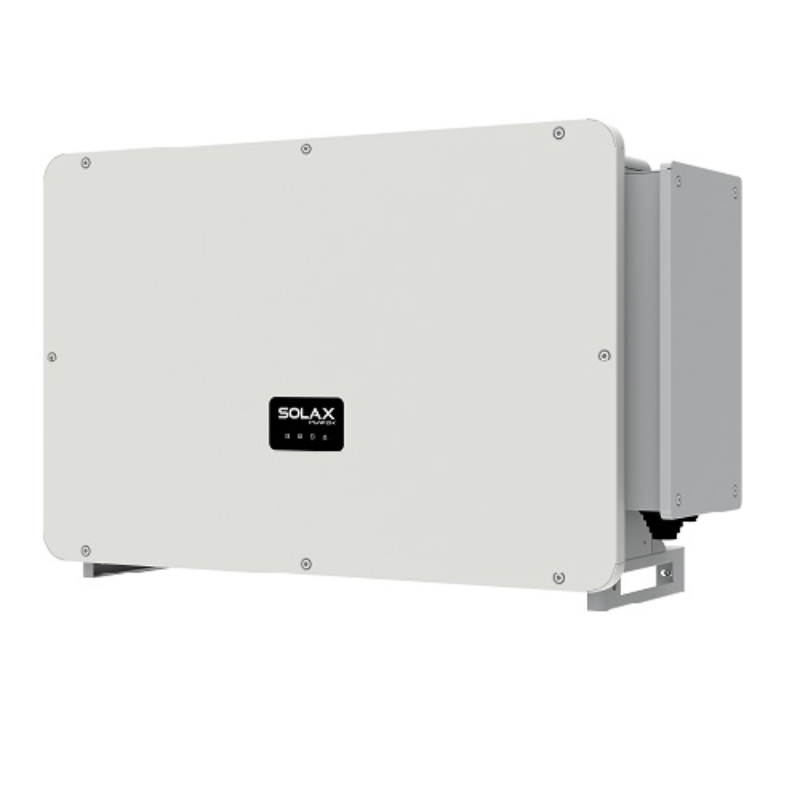

Solax X3-FORTH 125kW Inverter
X3-FORTH
Log in or register for trade discounts!
Quantity:BUY!
tell me more
SolaX have developed the 125kW X3-Forth as a commercial and roof-top scale string inverter with quality, reliability and efficiency and an IP66 protection rating. The X3-Forth features 12 MPPTs, each boasting an ultra-wide 180-1000V voltage range, a maximum Isc current of 46A and 150% PV oversizing, optimising a systems energy harvesting capabilities.
AC attributes
Max power:
125kW
Max current:
200A
Number of phases:
3
DC attributes
Max power
188kW
Max Isc current
MPPT range
MPPT range
46
180-1000V
180-1000V
Max voltage
1000
Start up voltage
200V
System
Max efficiency
98.6%
IP rating
IP66
Weight
87kg
Dimensions
985 x 660 x 327.5mm
Key features
