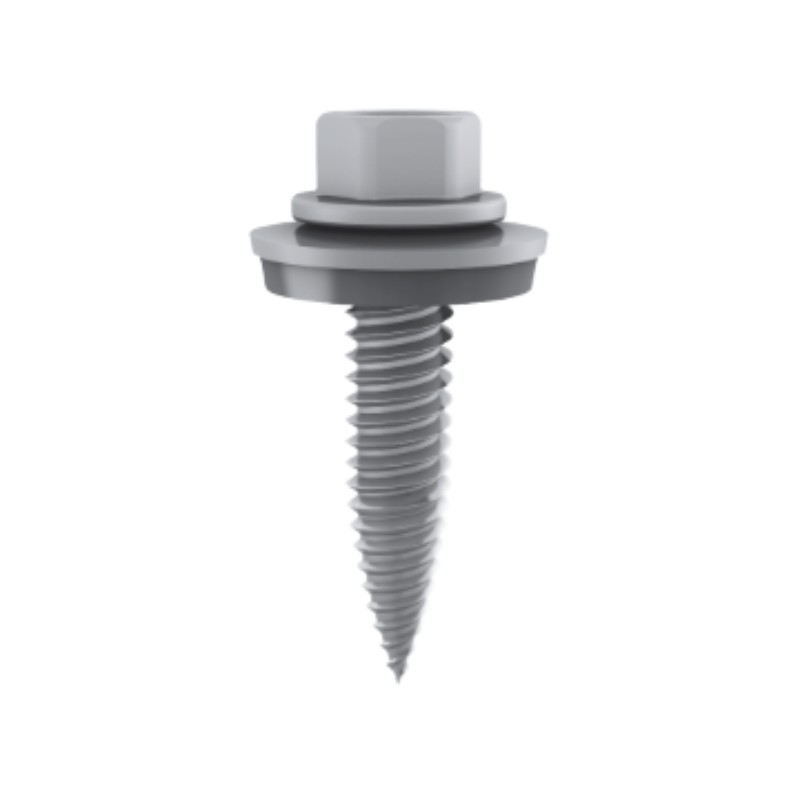

K2 S-Dome Screw for Windbreakers (New)
Screws, bolts
Log in or register for trade discounts!
Quantity:BUY!
tell me more
• Chipless fastening
• Specially coated
• With technical approval
• Double-threaded full thread
• Component 1, steel sheet 0,4 – 1,0 mm and aluminium 0,5 – 1,0 mm
• Component 2, steel sheet 0,4 - 1,25 mm and aluminium from 0,5 – 1,5 mm
• For fastening aluminium standing seam clips onto steel substructure from 0,75 – 1,25 mm
Recommendation for chipless fastening:
• Screw in with high pressure and low processing speed (approx. 200 rpm)
• Reduce pressure when the thread is providing forward feed
• Then increase rotation speed (approx. 1600 rpm)
• Significantly reduce speed before sealing washer touches the surface then tighten till the washer is lightly compressed
• Recommended tightening torque for steel substructures approx. 3 Nm, for less than 0,8 mm material thickness 1 Nm
• Recommended tightening torque for aluminium substructures approx. 1 Nm,
for less than 0,8 mm material thickness 0,5 Nm
