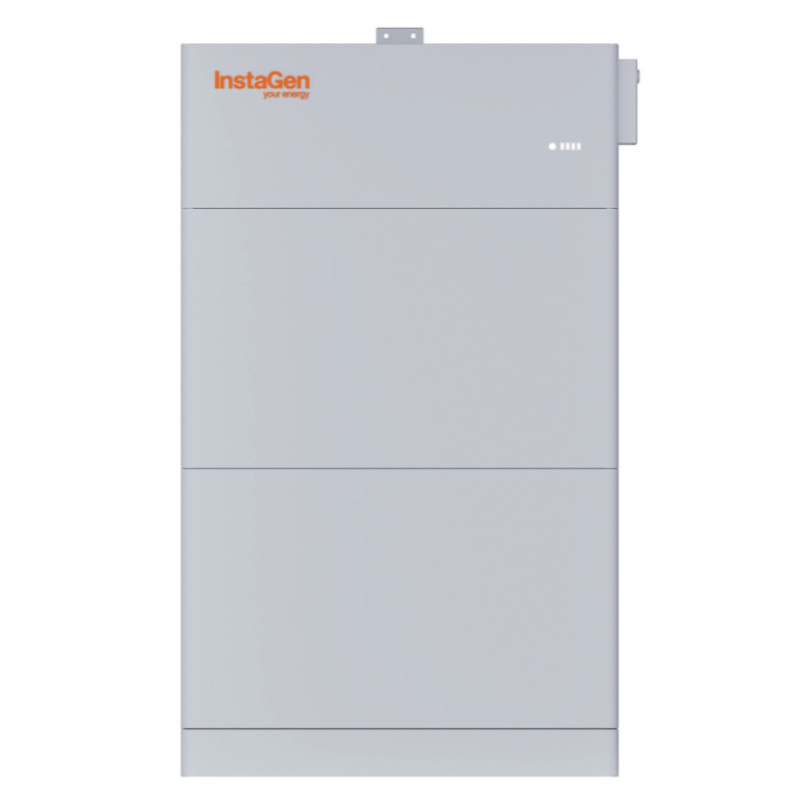

InstaGen 5kWh Battery Module V2
Battery
Log in or register for trade discounts!
Quantity:BUY!
tell me more
Discover the LV-(5-20)-G2 series, a deep cycle, high capacity LFP battery designed for enhanced safety, extended lifespan, and an optimised user experience in residential energy.
Key Features:
- Flexible & Scalable Power: One tower per InstaGen inverter can offer 5.12 kWh to 20.48 kWh (4 Battery Modules)
- Superior Safety: Utilises LFP technology with module-level fire protection and integrated overvoltage, undervoltage, overcurrent, overtemperature, and undertemperature protections, plus a DC breaker.
- Easy Installation: Features an IP66 design for indoor/outdoor suitability, a quick connector, and a stackable design that eliminates complex wiring between modules.
- Exceptional Performance: Delivers a recommended 90% depth of discharge (DOD) and an impressive 8000 cycle life at 25°C and 0.5C.
- Peace of Mind: Comes with a 10-year warranty and is certified to IEC 62619, UN 38.3, IEC 61000-6-1/-3 standards.
Instagen Battery Stack Components Needed:
You can have 1x battery stack per InstaGen inverter.
