Huawei 5kW 1ph Hybrid LUNA 7kWh Battery Bundle

1ph+7kWh

The Huawei 5kW hybrid with LUNA batteries are a complete PV and storage system kit in one place.


This kit will contain:

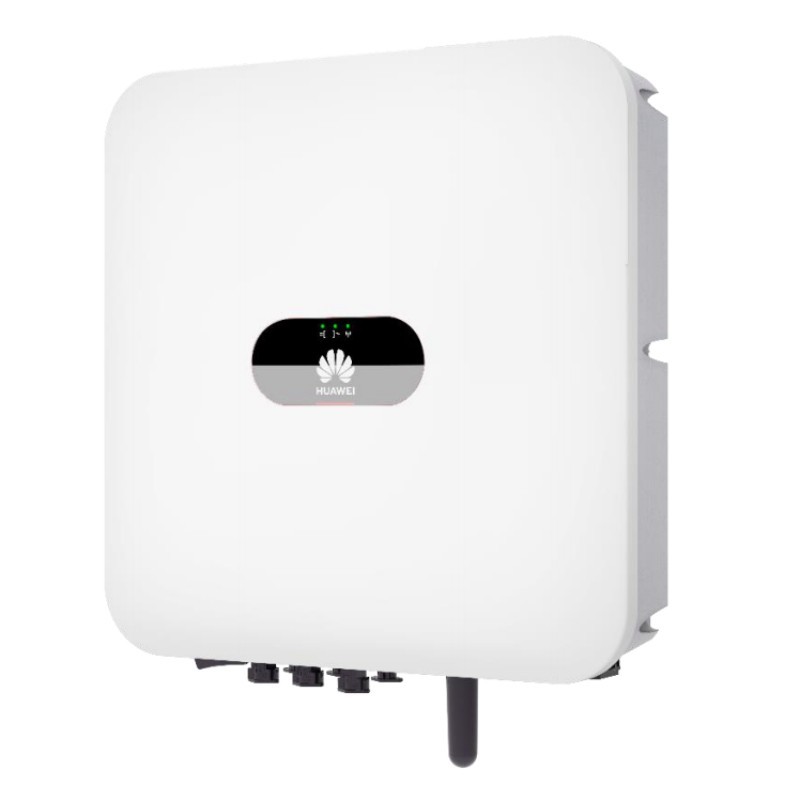

  • Huawei 5kW 1ph Hybrid inverter
  • LUNA power module (BMS)
  • LUNA 7kWh battery modules - quantity selected in the drop down box
  • Huawei 1ph smart meter (CT included)

This kit will NOT contain:

  • Signal cable between inverter and ESS
  • DC input power cables between inverter and ESS
  • PE cable
  • FE Communication cable
  • Dongle (see below)

The inverters have built in WiFi but also have options for alternative connection methods which are LAN dongle or the 4G dongle, depending on the site requirements. These are not included as part of the bundle so the appropriate option should be added separately to the order.


AC attributes
Max power
5000W
Max current
25A
Number of phases
1
DC attributes
Panels:
Number of MPPT
2
V range of MPPT
90 - 560V
Max power
7500W
Max current
18A
Max voltage
600V
Start up voltage
100V

Batteries:
Max power
5 kW*
Max current
14.2A
Battery types
Lithium
System
Max efficiency
98.4%
IP rating
IP65
Built in protection**
AC and DC surge protection Type II, arc fault
Export limitations
Possible using CT or meter
Weight
27kg
Dimensions
365x365x156mm
Communication
RS485, WLAN, (Ethernet, 4G optional)
Warranty (extensions)
10 years
Key features
AI Self leaning new arc detection
Real-time data at anytime and anywhere
Performance data back-up
Smart I-V Diagnosis
*This is the maximum output of the batteries but output power varies with number of batteries installed, a single battery will only output 2.5kW.

** for full list of protections see datasheet.
