Huawei 1300-P Optimiser 1300W Long Cable

Optimisers

Log in or register for trade discounts!

Quantity:
BUY!

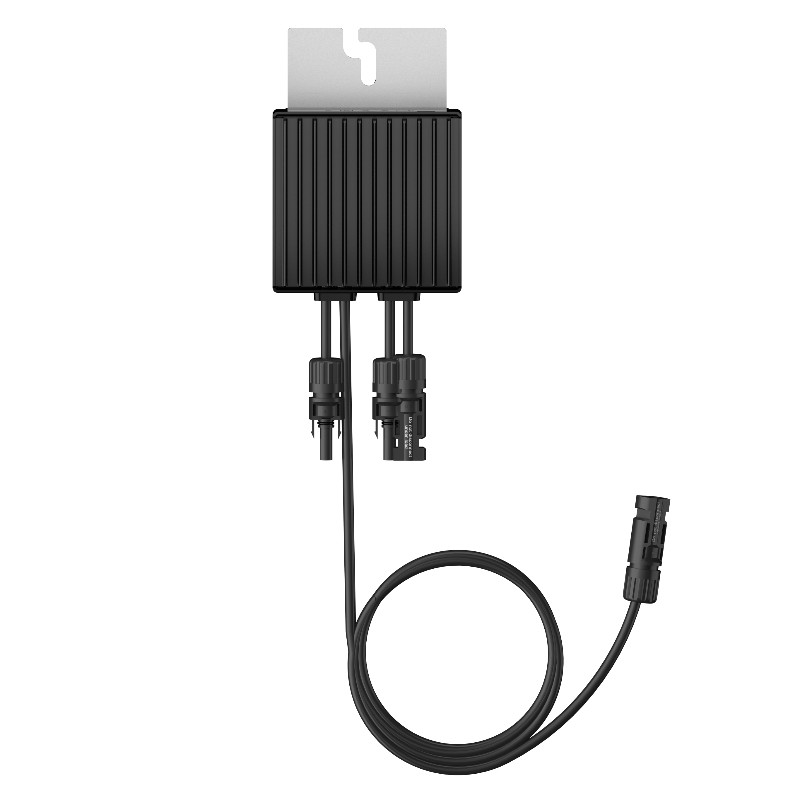

The Huawei Smart Optimiser MERC-1300W-P maximises the power output from solar modules, with each optimiser efficiently serving two modules. This design significantly increases the overall system efficiency. It's designed to be extremely flexible, with a wide MPPT voltage range from 12.5V to 105V, a maximum short circuit current of 20A, and a maximum input power of 1300W.

Compatible with the following Huawei inverters:

  • SUN2000-8/10/12/15/17/20KTL-M2
  • SUN2000-30/36/40KTL-M3
  • SUN2000-12/15/17/20/23/25KTL-M5
  • SUN2000-50KTL-M3
  • SUN2000-12/15/17/20/25K-MB0

DC attributes
Rated input power
1300W
V range of MPPT
12.5 - 100V
Max Isc current
20A
Absolute Max voltage
125V
System
Max efficiency
99.5%
IP rating
IP68
Weight
1 kg
Dimensions
Optimisers per string
Max DC Power per string
149mm x 104mm x 49 mm
8 - 20
20kW
Key features
  • Adaptable controller can effortlessly fit 210mm high-power and other popular PV modules.
  • Your PV modules can produce maximum power thanks to module-level optimisation.
  • Assures you of prioritized personnel and property safety. RSD will be activated and rooftop voltage reduced to 1V.
  • Access to FusionSolar, where you can check power generation anytime, providing fault locations and status.
