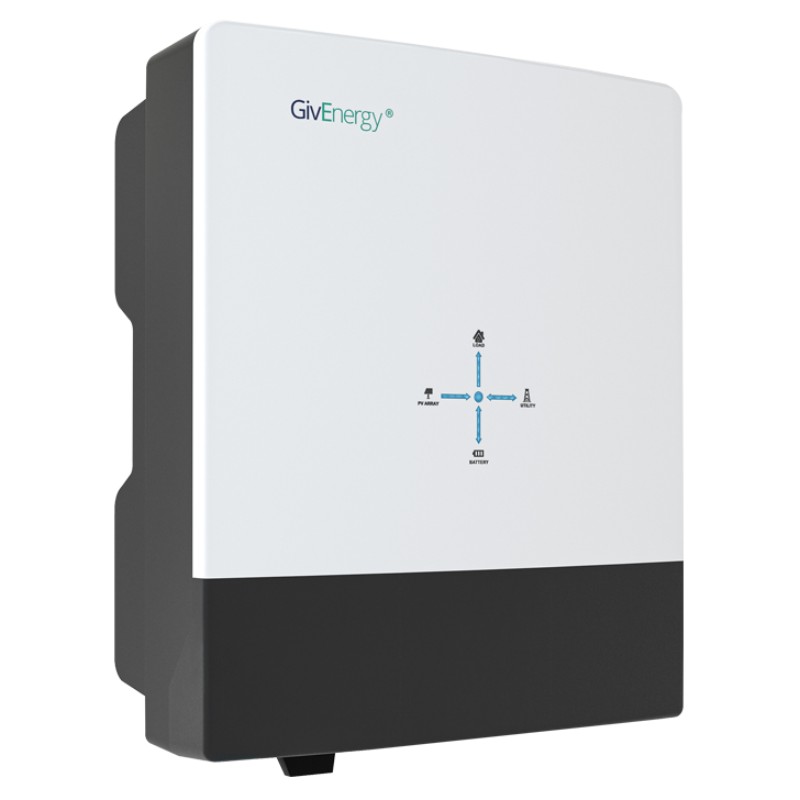

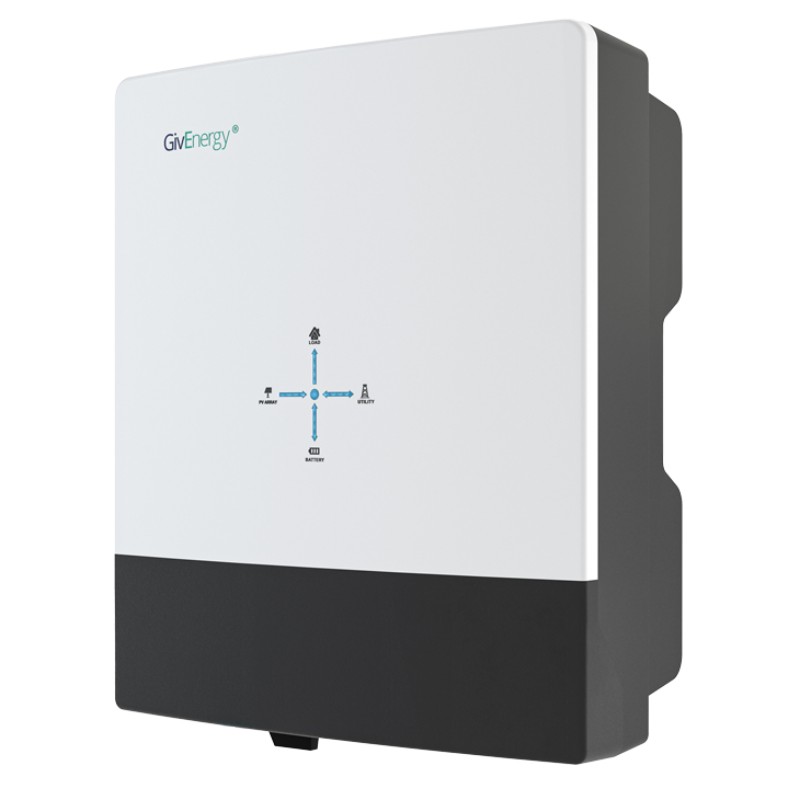

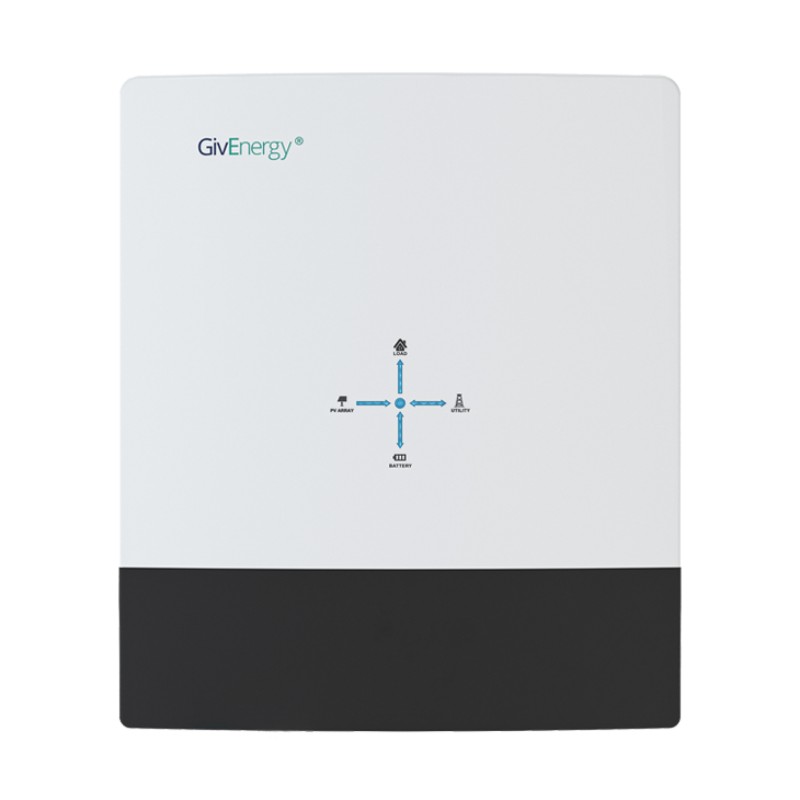

GivEnergy **GEN3** 10kW 1ph Hybrid HV Inverter

Gen3, 10kW

Log in or register for trade discounts!

Quantity:
BUY!

GivEnergy design and manufacture their own inverters, batteries and state-of-the-art management system and monitoring platform which combine to offer an exceptional storage package.

The third generation of the GivEnergy Hybrid inverter is a DC-coupled storage solution which allows you to seamlessly integrate battery storage into PV systems.

The GivEnergy Gen 3 hybrid inverter offers all of the benefits of the GivEnergy Gen 2 hybrid inverter while benefiting from a cleaner design discretely enclosing the connection ports. The 10kW Gen 3 hybrid inverter comes with an increased backup power output capability of 10kW when Solar and Battery are used in tandem. Additionally, the Gen 3 has an increased max input current per string of 30A allowing for higher current panels to be utilised in your system designs and an increased MPPT range.

  • Inbuilt WiFi and LAN: Includes in-built WiFi and LAN for a hard-wired network connection.
  • Higher Charge/Discharge Rate: High efficiency, high battery discharge rates of up to 10.5kW.
  • Flexible Rate Tariff: Charge the battery off peak where its cleaner, greener and less costly, then discharge the battery during peak times for maximum saving.
  • 12 Year Warranty: Supplied with a full manufacturers warranty, extendable to 10 years. GivEnergy's UK team are on hand to help you should any issues arise.

Installers must now offer an SPD to the homeowner for them to decide whether they would like one installed. Giv inverters do not come with an SPD inbuilt which means that installers will need to offer their own.

AC attributes
Max power:
10kW
Max current:
46A
Number of phases:
1
DC attributes
Max PV power
15.0kW
Max Isc
Max I (per string)
38A
30A
Max voltage
600V
Start up voltage
No. of MPPTs
MPPT Range
80V
2
90-550V
Battery
Battery type
LiFePO4
Battery voltage range
120-510V
Charge / discharge current
30A / 30A
Max. C / D power
10000W / 10500W
Backup Terminal Parameters (AC)
Nominal AC output power
10000W
Nominal voltage
230Vac
Max. output current
46A
Automatic switch time
10ms
System
Max efficiency
97.6%
Charge / discharge efficiency
96% / 96%
IP rating
IP65
Weight
36kg
Dimensions
588 * 214 * 480mm

Key features
  • In-built WiFi and LAN for internet connectivity.
  • Backup for power cuts with 10ms automatic switch time.
  • 12 year warranty* when commissioned online by a certified GivEnergy installer.
