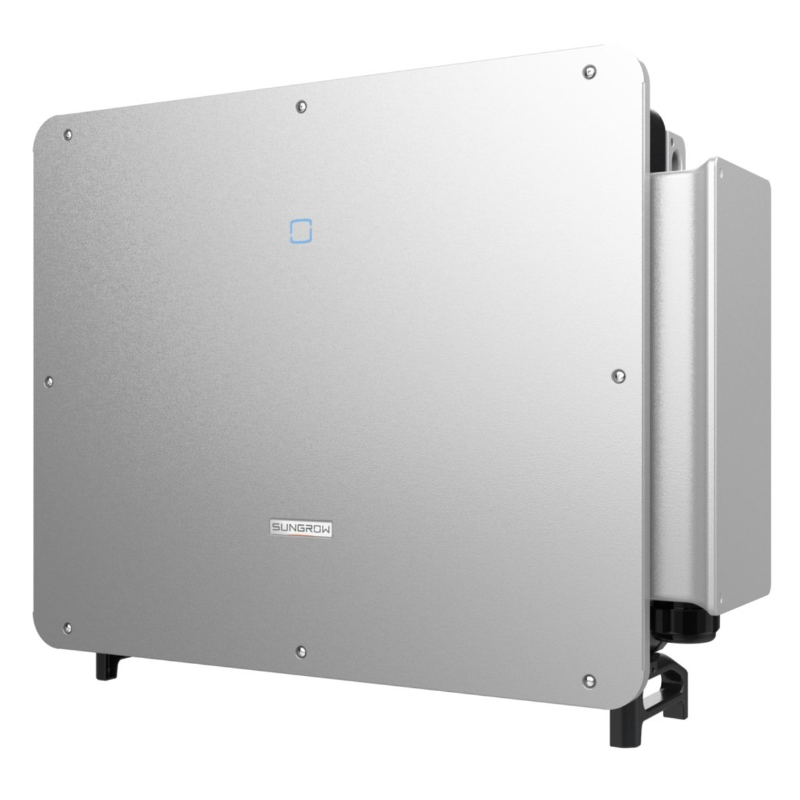

Sungrow SG350HX 350kW 3ph String Inverter

Commercial

Log in or register for trade discounts!

Quantity:
BUY!

tell me more

Introducing the Sungrow SG350HX 350kW 3ph string inverter, designed for maximum efficiency and reliability. With up to 16 MPPTs and 99% efficiency, it supports 20A per string for modules of 500Wp+. Exchange data with tracker systems for enhanced yield, and utilize Q at night function for optimal savings.

Enjoy active operation and maintenance with power line communication (PLC) and Smart IV Curve diagnosis, all at a low cost. Compliant with global grid codes, it ensures stable operation in weak grids and offers rapid reactive power response. With 2 strings per MPPT and 24-hour monitoring, it's the ideal choice for high yield, low cost, and grid support.

Key features:

  • High yield: up to 16 MPPTs, with maximum efficiency 99%. Compatible with 500Wp+ modules and up to 20A per string.
  • Increased savings: Q at night function to maximise energy generation and savings in low light conditions.
  • Enhanced safety: No fear of string reverse connection, due to having 2 strings per MPPT. As well as this, enjoy 24 hour real-time AC and DC insulation monitoring.

AC attributes
Max power:
350kW
Max current:
254A
Phases:
3
DC attributes
Max Isc current
60A per MPPT
Max voltage
1500V
Min input voltage
Start up voltage
500V
550V
System
Max efficiency
99.02%
IP rating
IP66
Weight
116kg
Dimensions
1136 x 870 x 361mm

Key features
  • Q at night function
  • IP66 Protection
  • Power line communication (PLC)
  • 2 strings per MPPT
  • 24h real-time AC and DC insulation monitoring
