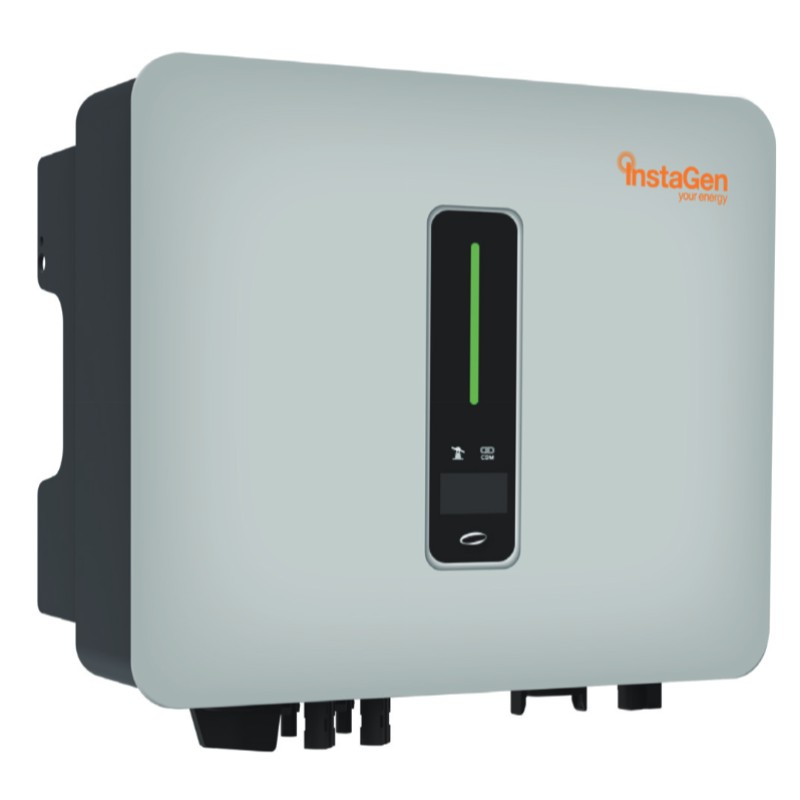

InstaGen 1.5kW 1ph String inverter (1 MPPT)
1 MPPT
Log in or register for trade discounts!
Quantity:BUY!
The InstaGen string inverter is a cost effective solution for small to medium installations, and comes with many benefits, including 110% continuous AC output overloading, plug & play terminals for easy wiring, and an OLED display along with an app for setting and data management.
Convenient Installation & Operation
- Plug & Play terminals for easy wiring
- OLED display and App for setting and data management
Flexible Design & Use
- IP65 for indoor and outdoor installation
- Compact size and elegant appearance
DC attributes
Max Isc
20A
Max I (per string)
Max voltage
Max voltage
15A
500V
500V
Start-up voltage
No. of MPPTs
MPPT Range
No. of MPPTs
MPPT Range
60V
1
50-450V
1
50-450V
AC attributes
Max power
1.5kW
Max. current
No. of phases
No. of phases
7.20A
1
1
System
MPPT efficiency
Max. efficiency
Max. efficiency
99.9%
97.3%
97.3%
IP rating
IP65
Weight
6.0kg
Dimensions
297 x 220 x 158 mm
