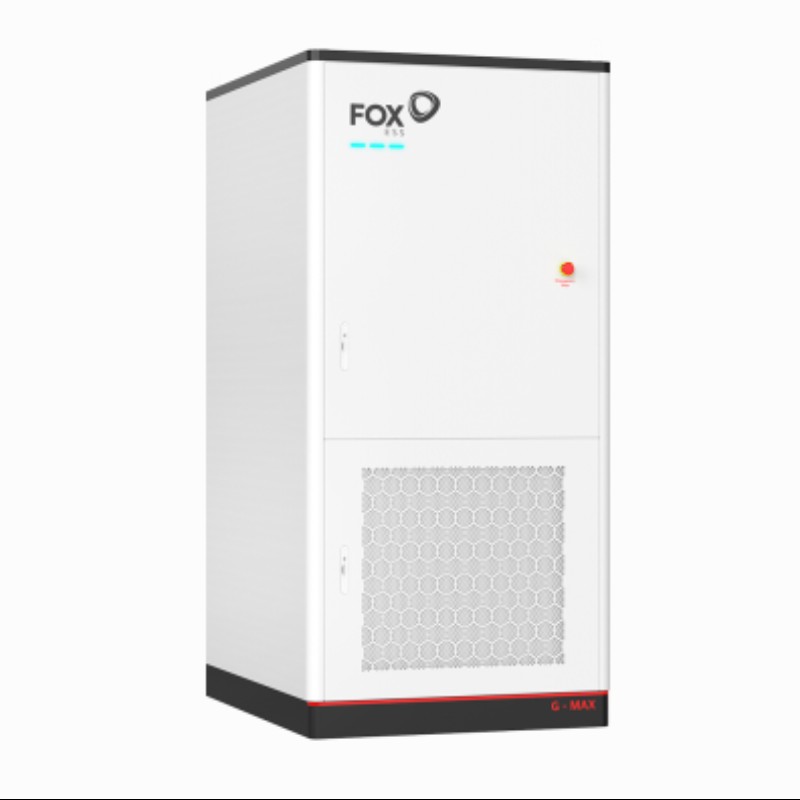

Fox ESS G-Max 100kW (215kWh Storage) 3ph All In One System
G-Max
The Fox ESS G-Max Series 100kW All in One comes with 215kWh of storage. It has a compartmentalized design with a preventive alarm system. There is zero power loss due efficient temperature control and frequency variation.
AC attributes
Max power:
100kW
Number of phases:
3
Battery Information
Battery Type
Battery Voltage
Battery Voltage
LFP 3.2/280
672-876V
672-876V
Battery Capacity
215kWh (53.76kWh per pack)
System
IP rating
Communication
Communication
IP67 (battery), IP54 (enclosure)
Ethernet
Ethernet
Weight
<2500kg
Dimensions
1040 x 1500 x 2200mm
Additional features
- Intelligent - Offers multiple operation modes, including Peak Shaving, Load Shedding, PV-Storage Energy Control, and Frequency Regulation. Operating data can be transmitted to Fox ESS Cloud via Wi-Fi, 4G or 5G.
- Augmentable - Pre-configured during manufacturing, plug and play onsite. Capable of parallel connection upgrades for flexible system size application.
