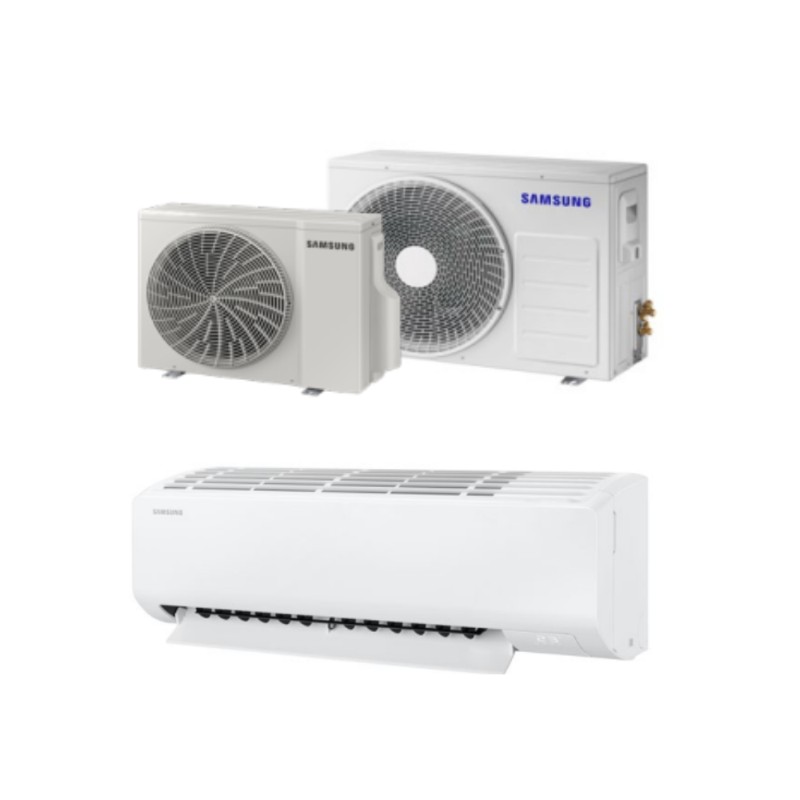

Samsung Cebu S2 High Wall System 3.5kW Cooling 3.5kW Heating Bundle

Cebu RAC

Log in or register for trade discounts!

Quantity:
BUY!

Samsung Residential Air Conditioning Bundle with Wi-fi Connectivity. Supplied with Solar Infra-red remote control as standard. This Bundle contains products AR50F12C1AHXEU and AR50F12C1AHNEU


Details for the system:

  • Cooling 3.5kW (1-4kW)
  • Heating 3.5kW (0.9-5kW)
  • SEER 7.0 A++
  • SCoP 4.2 A+

Samsung offers a 7 year warranty for this product provided the equipment is serviced annually.
Technical Specification:
Heat Pump Product Class
Residential Air Conditioning
Nominal capacity
2.5kW Cooling 3.2kW Heating
Refrigerant type
R32
Refrigerant Charge
0.7kg / 0.47tCO2e
Product Details
Product codes
AR50F12C1AHXEU and AR50F12C1AHNEU
Max Fuse
10A
Power Source Wire
1.5mm2
Comms Wire
0.75mm2
Pipework Limitations
Maximum Pipe length between Indoor and Outdoor Units
15m
Maximum Pipe Height between Indoor and Outdoor Units
8m
Piping Connections
Liquid Pipe (Flare connection)
6.35 Φ mm
Liquid Pipe (Flare connection)
1/4 Φ inch
Gas Pipe (Flare connection)
9.52 Φ mm
Gas Pipe (Flare connection)
3/8 Φ inch
Heat insulation
Both Liquid and Gas Pipes

System Efficiency Spec:

System performance cooling (Min/Std/Max) kW 1.05 / 3.5 / 4

System performance cooling (Min/Std/Max) Btu/h 3,583 / 11,942 / 13,649

System performance heating (Min/Std/Max) kW 0.85 / 3.5 / 5

System performance heating (Min/Std/Max) Btu/h 2,900 / 11,942 / 17,061

System Power Input cooling(Min/Std/Max) kW 0.21 / 1.06 / 1.2

System Power Input heating(Min/Std/Max) kW 0.18 / 0.93 / 1.72

System Current Input cooling (Min/Std/Max) A 1.2 / 4.7 / 5.3

System Current Input heating (Min/Std/Max) A 1.4 / 4.2 / 7.6

Efficiency EER Cooling 3.30 W/W

Efficiency COP 3.76

Efficiency (EN14825) Pdesign_C Cooling kW 3.5

Efficiency (EN14825) SEER Cooling W/W 7 (A++)

Efficiency (EN14825) Pdesign_H Heating (Wamer average) kW 1.2 / 2.2

Efficiency (EN14825) SCOP Heating (Wamer average) 4.9 / 4.2 (A++ / A+)
