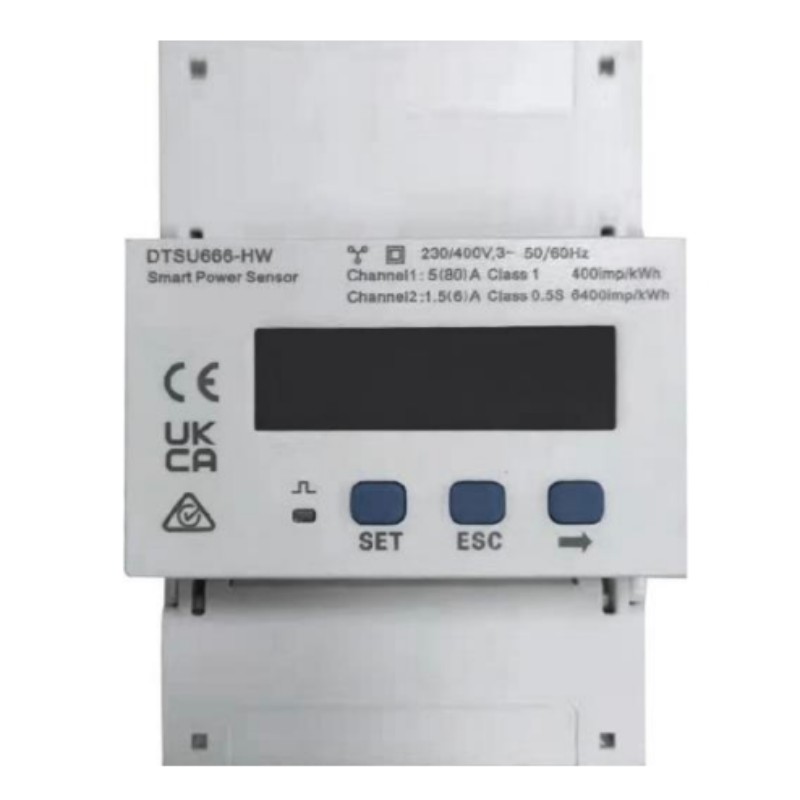

The Huawei 3 phase smart power sensor provides an accurate, simple and efficient way of allowing the inverter to monitor home consumption for export limitation or battery system operation. This DTSU666-HW meter can be installed as an in-line meter or as an external meter which uses a CT to monitor power flow.

Please note that the CTs do not come with this meter.

Features:

• Measurement accuracy > class 1 with full temperature range
• In line direct meter connection up to 80A
• Connection via CTs if current is greater than 80A
• Power export limitation control
• LCD display, convenient for users to set and check
• Overall power consumption < 1.5W
