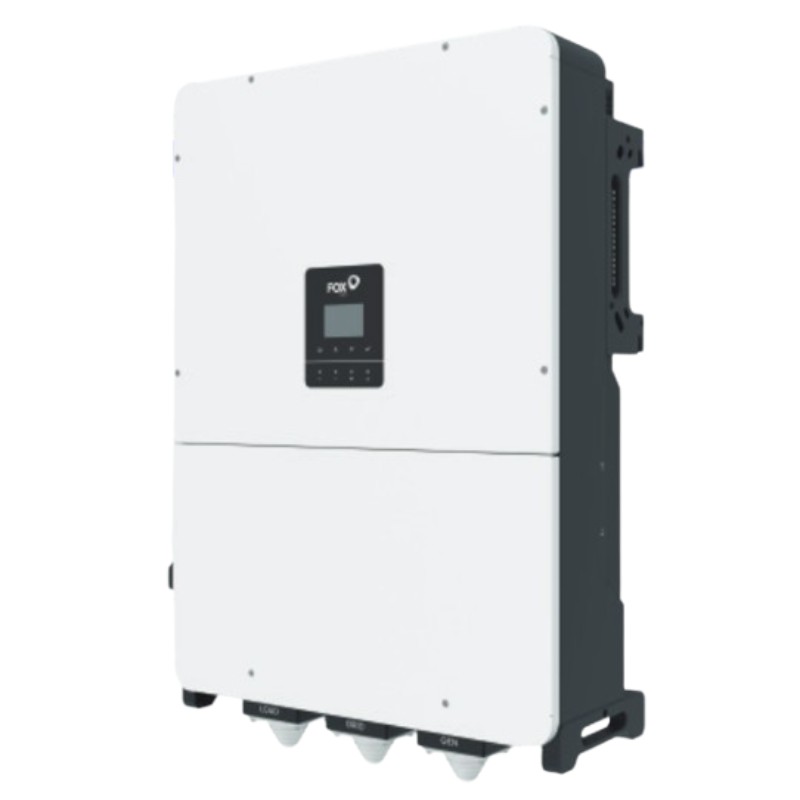

Fox ESS H3 Plus 125kW 3ph Hybrid Inverter
H3 Plus
The Fox ESS H3 Plus 125kW 3ph Hybrid Inverter offers a state-of-the-art solution for commercial applications, prioritising efficiency and reliability. These inverters support 100% unbalanced three-phase output and can provide more than 6 hours of backup power capability.
Key features include a rapid EPS function with less than 10ms switch time, and an IP65 ingress protection rating for durability. Advanced system monitoring is available via FoxCloud V2.0, along with various communication options.
These inverters are compatible with the CQ16 16.07kWh High Voltage stackable batteries.
AC attributes
Rated output power:
125kW
Rated output current:
189.9A per phase
Number of phases:
3
DC Attributes
Max PV power
250kW
Max input current
Max input voltage
Max input voltage
40A per MPPT
1000V
1000V
Start-up voltage
180V
No. of MPPTs
Strings per MPPT
MPPT range
Strings per MPPT
MPPT range
8
2
180-850V
2
180-850V
System
Max. efficiency
98.5%
IP rating
IP65
Weight
120kg
Dimensions
No. of battery ports
No. of battery ports
730 x 1060 x 305mm
3
3
