Fox ESS CQ16 16.07kWh Li-ion High Voltage Stackable Battery
CQ

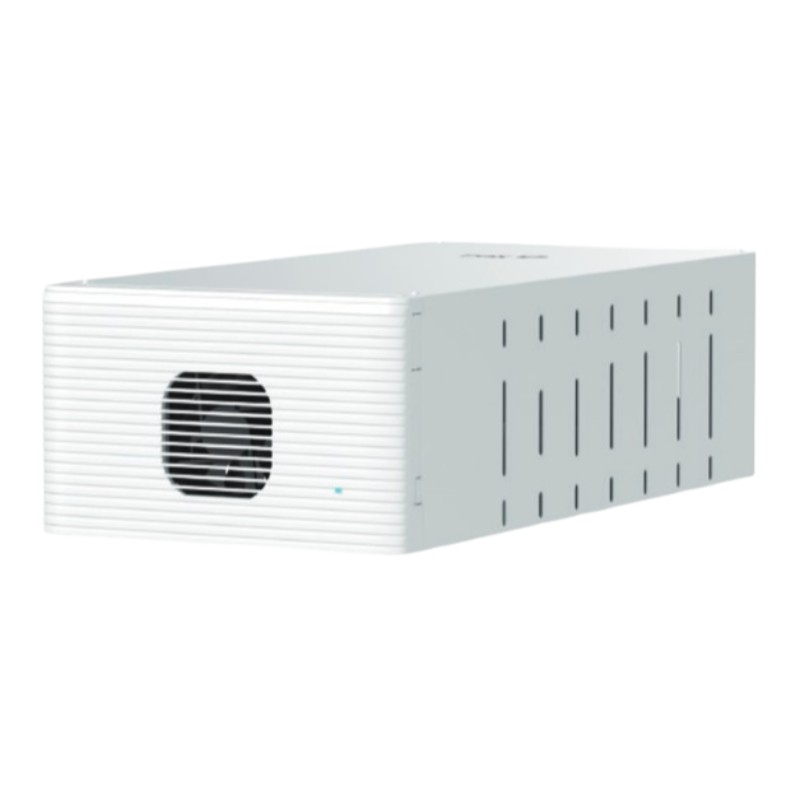

The Fox ESS CQ16 is a scalable, high-voltage battery with each battery module providing 16.07kWh of battery capacity. It offers a high efficiency and easy installation with a floor mounted compact and stackable design. It is only suitable for indoor installation.
System design

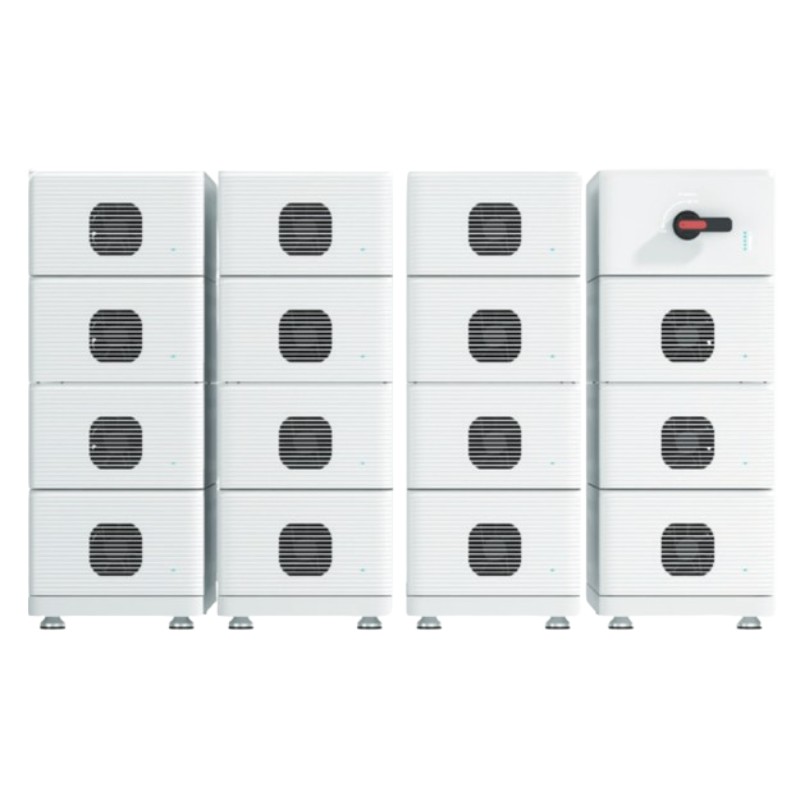

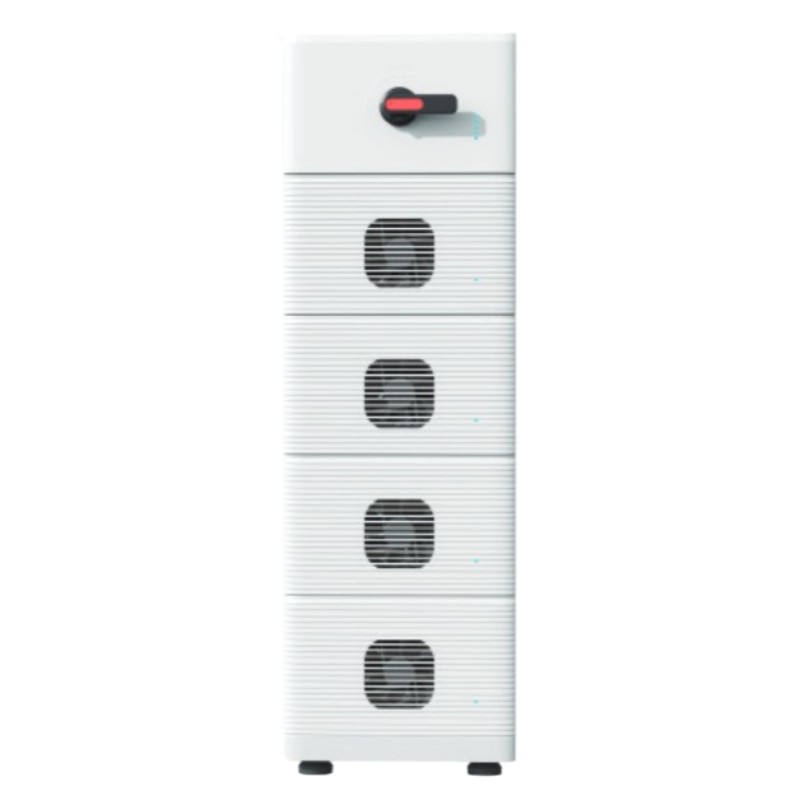

Modules can be combined in stacks of up to 4 batteries.
One system can have up to a maximum of 15 modules for 241.05kWh of capacity.
Every system will require one control box.
There is a minimum of 4 battery modules or 64.28kWh required per system.
One cable pack and one battery base required per stack.
The CQ16 battery is only compatible with the Fox ESS H3 Plus inverter range.
The H3 Plus inverters have 3 battery ports. Each battery port can have a CQ16 system with a total of 45 battery modules connected to one H3 Plus inverter.
Electrical
Module capacity
16.07kWh
Nominal voltage
51.2V
Max. charge current
240A
Depth of discharge
Operating temperature
Operating temperature
90%
Charging: 0 - 55°C
Discharging: -10 - 55°C
Charging: 0 - 55°C
Discharging: -10 - 55°C
System
Weight
128kg
Dimensions
390 x 235 x 810mm
Ingress Protection
IP20Scalability
Cycle life
Cycle life
Min: 4 modules
Max: 15 modules
6000 cycles @ 70%SOH
Max: 15 modules
6000 cycles @ 70%SOH
