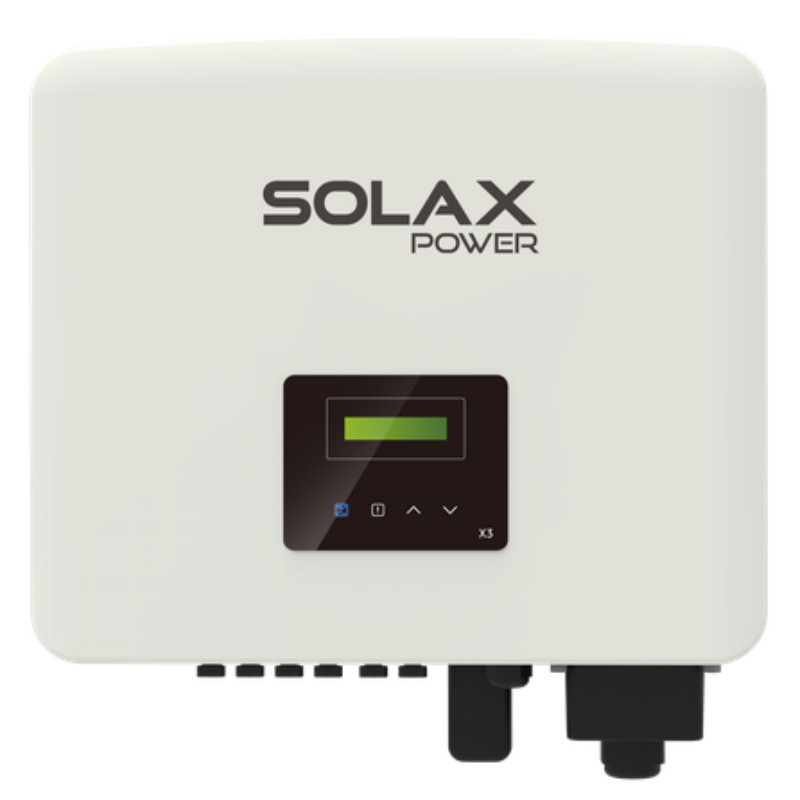

SolaX X3-Pro G2 20kW 3ph Inverter
X3-PRO
The SolaX X-3 Pro 3-phase solar inverter, which delivers up to a 98.5% efficiency with a maximum input voltage of 1100V and an IP66 rating, is built for reliable performance even in low light or variable conditions. It supports 150% DC oversizing and 110% AC overloading and uses 32A per MPP tracker with an ultra-wide MPPT range and a low start up voltage to maximise energy harvest.
150% DC oversizing and 110% AC overloading IP66 Protection Low start up voltage & ultra-wide MPPT range 24 hours operation monitoring
AFCI support
AC attributes
Max power:
20kW
Max current:
30.3A
Number of phases:
3
DC attributes
Max Input power
30.0kW
Max Input current
MPPT range
MPPT range
32A
160-980V
160-980V
Max voltage
1100V
Start up voltage
No. of MPPTs
Strings per MPPT
No. of MPPTs
Strings per MPPT
200V
2
2
2
2
System
Max efficiency
98.3%
IP rating
IP66
Weight
26.0kg
Dimensions
482x417x186mm
Key features
