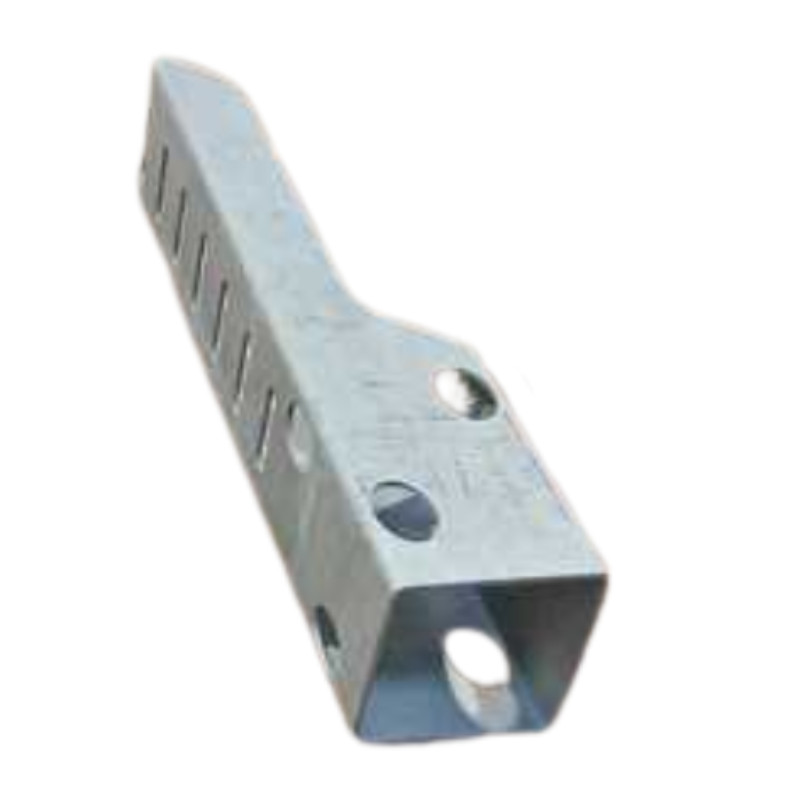

Solarport X-Anchor Body (0000-XRB-104) used with Anchor Tubes
X-Anchor
The X Anchor foundation is a patented design by Solarport and is suitable for sites that require shallow embedment and/or no heavy machinery. Four X Anchor Tubes are driven into the ground through the X Anchor Body (at a 40 degree angle) to create a secure attachment to the ground.
Installation:
Steel rods driven with hand tools.
Dimensions:
Length = 500mm
Material:
Hot rolled steel (S355JR) hot dipped galvanised steel (ZM310). Corrosion protection to be determined from site location and ground investigations.
Product code: 0000-XRB-104
Note: The X Anchor Body should be paired with 4X X Anchor Tube.
