Fox ESS EP6 5.76kWh Li-ion Battery w/ heating function
EP

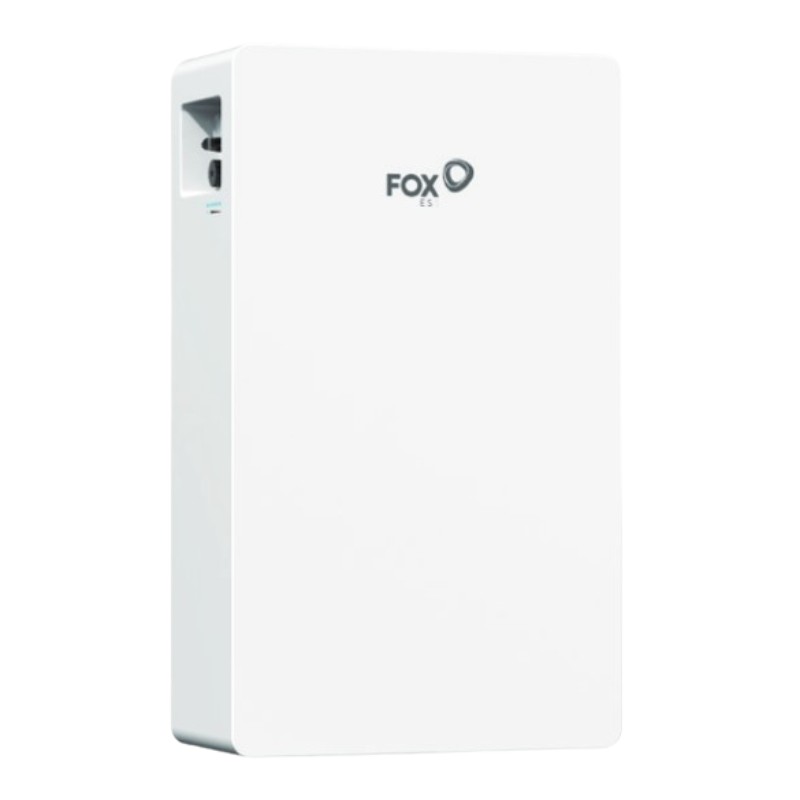

The Fox ESS EP6 Plus is a high-performance, scalable LFP high-voltage storage battery with a nominal energy of 5.76kWh, which can be expanded up to 23.04kWh (per battery port of inverter) by installing up to four units in parallel using the 4-way junction box from Fox ESS. This battery also includes a self-heating element, allowing for better charge/discharge at low temperatures.
The EP series is compatible with the full range of Fox ESS 1ph and 3ph Hybrid and AC inverters*.
**requires online registration at fox-ess.com
The EP series is compatible with the full range of Fox ESS 1ph and 3ph Hybrid and AC inverters*.
The EP range has some cross compatibility between EP5 & EP6 as well as EP11 & EP12 (please note that EP5/6 are not compatible with EP11/12). For more information on cross generational expansions please click here.
*Actual minimum and maximum battery quantities may differ depending on inverter model used. Please refer to the Battery Sizing Guide.
Technical
Battery type:
LFP (LiFePO4)
Nominal energy:
Operating voltage:
Max. charge current:
Max. discharge current:
DoD:
Round-trip efficiency:
Scalability:
Operating voltage:
Max. charge current:
Max. discharge current:
DoD:
Round-trip efficiency:
Scalability:
5.76kWh
174 - 219V
30A
30A
90%
>95%
Max. 4 units in parallel
174 - 219V
30A
30A
90%
>95%
Max. 4 units in parallel
General
Weight:
51kg
Dimensions:
380 x 640 x 185mm
IP rating:
IP65
Operating temperature:
Humidity:
Warranty:
Humidity:
Warranty:
-25°C - 55°C
5 - 95% (no condensation)
10 years**
10 years**
