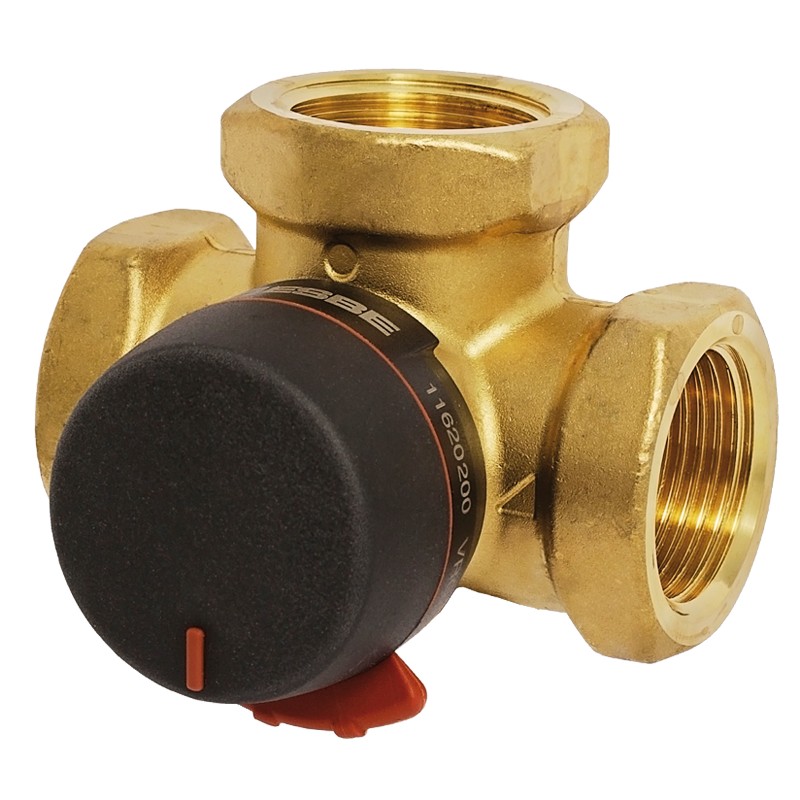

ESBE VRG231 DN25 3-Way Mid-Port Valve
Valves
The VRG231 is a 3-way valve suitable for midport change-over and diverting operations made of high-performing brass designed for use in heating and cooling operations. It has a 1" internal thread connection and a nominal diameter of 25mm.
The VRG231 is designed specifically to be low leakage and is equipped with non-slip knobs and end stops for easy manual operation. The valve position scale can also be rotated and turned over to allow for a wide range of possible mounting positions.
The VRG231 is designed to work with the ESBE ARA600 actuator series for easy automation, using ESBE's unique valve-to-actuator interface.
Valve Specifications
Working Pressure
1MPa
Torque
< 3Nm
Min. Media Temp.
-10°C
Max. Media Temp.
110°C
Kvs value
10m3/h
Valve Details
Product Code
11620200
Pipe Diameter
DN25
Connection
RP 1"
Weight
0.7kg
