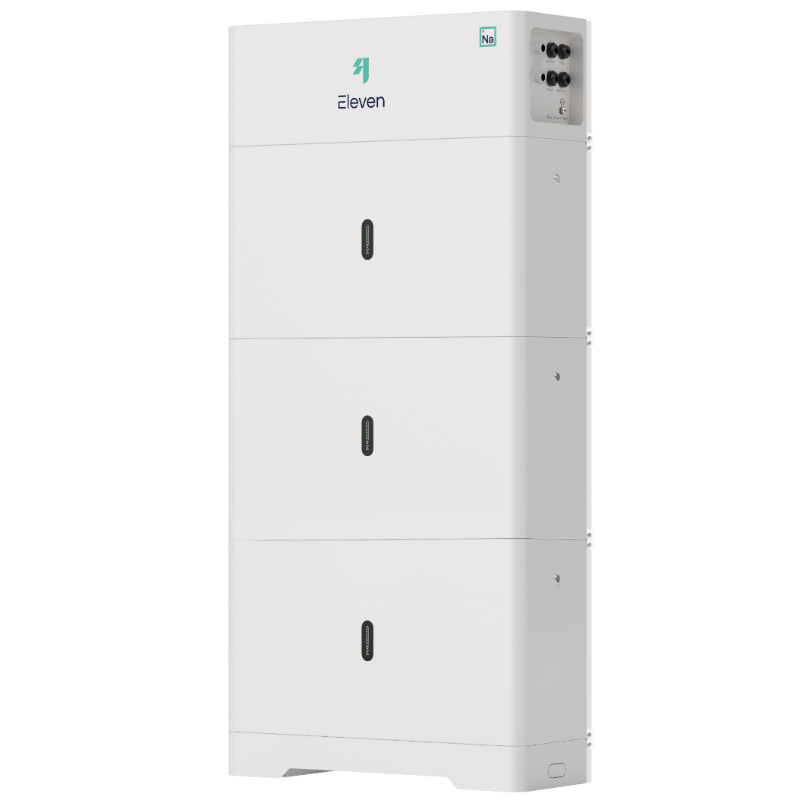

Eleven Energy Galvani 4.5 kWh Stackable Sodium Ion Battery

Stackable Bat

Log in or register for trade discounts!

Quantity:
BUY!

Eleven Energy's Galvani 4.5 kWh battery offers a stackable solution for your Energy Storage System.


Expandable Capacity

Up to 4 batteries can be connected in a single stack. One base plate and junction box is required per stack of batteries.
The Galvani Stackable batteries can only be connected to Eleven Energy Hybrid Inverters.

Connecting battery stacks in parallel will be available in the near future with the release of the Eleven Energy Stackable Battery parallel cable.

Flexible Installation

The Galvani stackable battery is built for high performance in indoor or outdoor environments with a wide charging range of -20 - 55°C and a high charge/discharge rate.

Sodium Ion Technology

Sodium ion batteries are the environmentally friendly choice, sodium is abundant and easily extracted from seawater or soda ash, while lithium is scarce, and is often mined or extracted from brines in environmentally sensitive locations such as the Atacama Desert. Unlike lithium ion batteries, whose performance drops significantly at cold temperatures, sodium ion batteries are largely unaffected by temperature and will operate at -20 degrees so are ideal for outdoor installations.

10 year warranty

Technical

Battery type:
Sodium-Ion
Capacity:
Operating voltage:
Max charge current:


Max discharge current:

Depth of Discharge:
4.5kWh
33V - 59.2 V
100A Single Module
200A Multi Module

100A Single Module
200A Multi Module
92% On-Grid
95% Off-Grid

General

Weight:
59kg
Battery Module Dimensions (WxHxD):
640 x 350 x 250mm
IP rating:
IP65
Charging temperature:
Humidity:
Warranty:
-20°C - 55°C
5 - 95%
10 years
