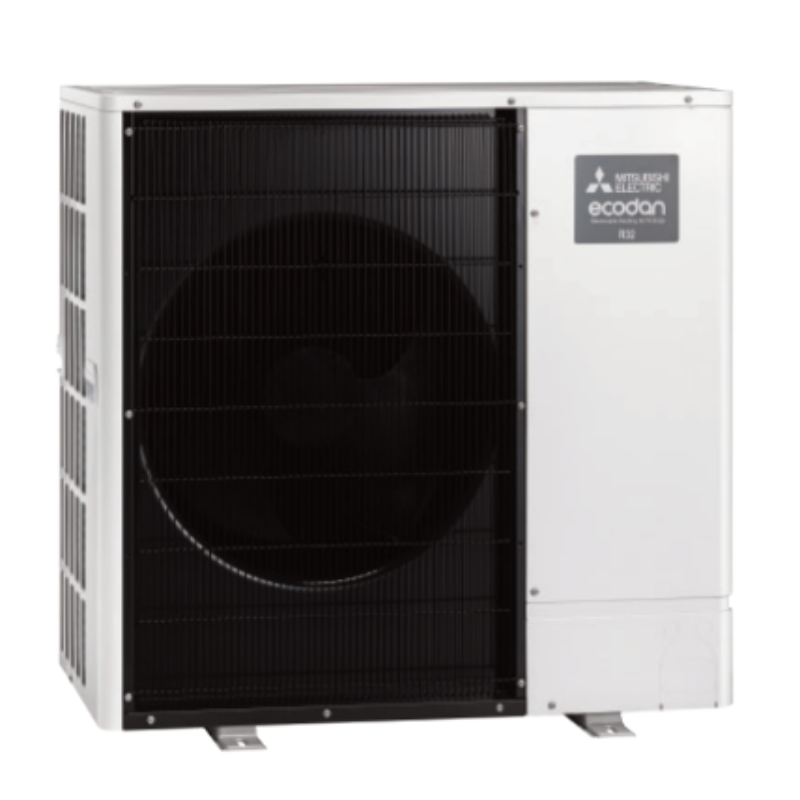

Mitsubishi Ecodan R32 8.5kW 3Ph Monobloc Air Source Heat Pump + Cylinder Package (Coastal)

R32 C Pkg.

Log in or register for trade discounts!

Options:

Quantity:

BUY!


The innovative stylish single fan outdoor monobloc air source heat pump unit utilises advanced technologies and R32 refrigerant to deliver improved efficiencies. Designed to satisfy domestic premises permitted development standards (MCS020), the market leading low noise levels virtually eliminate the need for planning permission and maximises installation options. This model is built with enhanced coastal corrosion protection.

Sold as a standalone package, with a packaged 200L cylinder, or with a range of pre-plumbed cylinders. Select your preference using the options dropdown below the price. All come with the latest FTC7 controller included, along with a variety of components depending on the package selected (see below).


Key Features:

  • A+++ heating efficiency (Range A+++ to D)
  • Ultra quiet noise levels
  • Maintains full heating capacity at low temperatures
  • Zero carbon solution
  • MELCloud enabled

Technical Information
Nominal capacity
8.5kW
Compressor type
Hermetic twin rotary
Refrigerant type
R32
Refrigerant vol. (Chargeless)
2.2kg
Nominal flow rate
24L/min
Minimum water volume
5L
Product Details
Product code
PUZ-WM85YAA-BS
Max flow temp
60°C
Operating range (Heating)
-20°C - + 24°C
Operating range (DHW)
-20°C - + 35°c
Operating range (Cooling)
+10°c - +46°c
Electrical supply
400V, 50Hz
Sound power level
58 dBA
Rec. pipe size
28mm
Product Dimensions
Height
1020mm
Width
1050mm
Depth
480mm
Net weight
111kg
MCS Listed SCOPs (with 200L Packaged Cylinder)
@35°C
4.81
@40°C
4.47
@45°C
4.12
@50°C
3.79
@55°C
3.46
Included Components

(Click to enlarge)
