R32 Pkg.

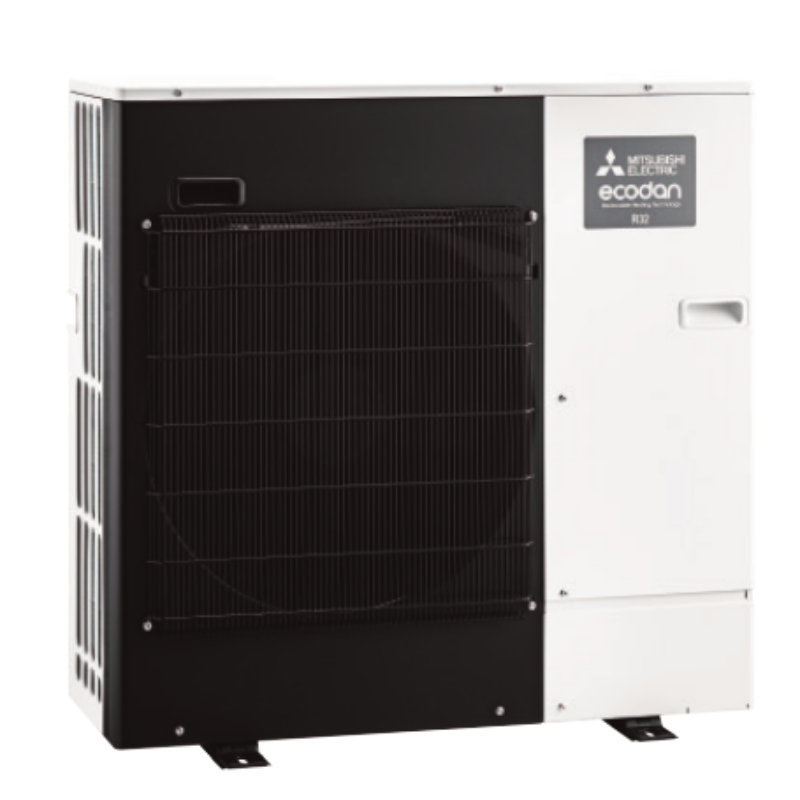

The stylish, compact single fan outdoor monobloc air source heat pump unit utilises advanced technologies and R32 refrigerant to deliver improved efficiencies. Designed to satisfy smaller heat demand domestic premises, the market leading low noise levels virtually eliminate the need for planning permission and maximises installation options.

Sold as a standalone package, with a packaged 200L cylinder, or with a range of pre-plumbed cylinders. Select your preference using the options dropdown below the price. All come with the latest FTC7 controller included, along with a variety of components depending on the package selected (see below).

Key Features:

Technical Information

Nominal capacity

5kW

Compressor type

Hermetic twin rotary

Refrigerant type

R32

Refrigerant vol. (Chargeless)

2.0kg

Nominal flow rate

14L/min

Minimum water volume

5L

Product Details

Product code

PUZ-WM50VHA

Max flow temp

60°C

Operating range (Heating)

-20°C - + 24°C

Operating range (DHW)

-20°C - + 35°c

Operating range (Cooling)

+10°c - +46°c

Electrical supply

230V, 50Hz

Sound power level

61 dBA

Rec. pipe size

22mm

Product Dimensions

Height

943mm

Width

950mm

Depth

330+30mm

Net weight

71kg

MCS Listed SCOPs (with 200L Packaged Cylinder)

@35°C

4.62

@40°C

4.27

@45°C

3.93

@50°C

3.58

@55°C

3.24

Included Components

(Click to enlarge)
