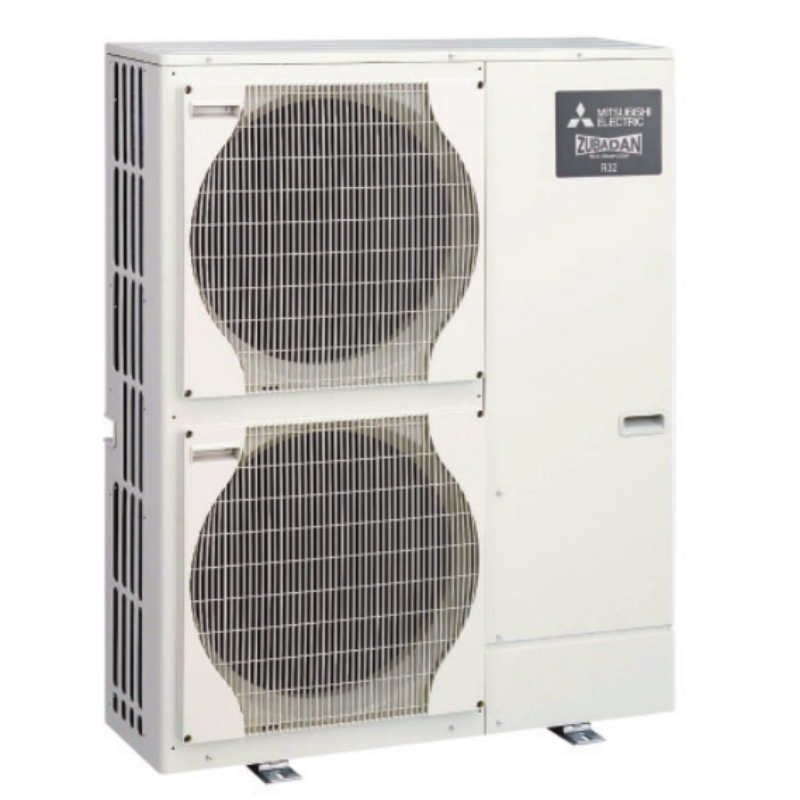

Mitsubishi Ecodan R32 14kW 1Ph Monobloc Air Source Heat Pump + Cylinder Package (Coastal)
R32 C Pkg.
Log in or register for trade discounts!
Options:
BUY!
tell me more
- EHPT20X-MEHEW Packaged Cylinder Product information Sheet
- FTC7 Pre-plumbed Cylinder EHPT15-17 Product Information Sheet
- FTC7 Pre-plumbed Cylinder Standard EHPT15-30 Product Information Sheet
- Ecodan PUZ-WM R32 Databook
- MCS SCOP Certification Document
- Mitsubishi Coastal Protection
- Ecodan Cylinder Compatibility
The Ecodan R32 Zubadan monobloc air source heat pump utilises advanced technologies and R32 refrigerant to deliver improved efficiencies. Designed to satisfy larger domestic premises, the patented Zubadan technology is able to maintain a stable heat output at very low temperatures. This model is built with enhanced coastal corrosion protection.
Sold as a standalone package, with a packaged 200L cylinder, or with a range of pre-plumbed cylinders. Select your preference using the options dropdown below the price. All come with the latest FTC7 controller included, along with a variety of components depending on the package selected (see below).
Key Features:
- A+++ heating efficiency (Range A+++ to D)
- Ultra quiet noise levels
- Maintains full heating capacity at low temperatures
- Zero carbon solution
- MELCloud enabled
Technical Information
Nominal capacity
14kW
Compressor type
Hermetic scroll
Refrigerant type
R32
Refrigerant vol. (Chargeless)
3.3kg
Nominal flow rate
40L/min
Minimum water volume
5L
Product Details
Product code
PUZ-HWM140VHA-BS
Max flow temp
60°C
Operating range (Heating)
-28°C - + 21°C
Operating range (DHW)
-28°C - + 35°c
Operating range (Cooling)
+10°c - +46°c
Electrical supply
230V, 50Hz
Sound power level
67 dBA
Rec. pipe size
28mm
Product Dimensions
Height
1350mm
Width
1020mm
Depth
330+30mm
Net weight
132kg
MCS Listed SCOPs (with 200L Packaged Cylinder)
@35°C
4.33
@40°C
4.05
@45°C
3.77
@50°C
3.51
@55°C
3.26
Included Components
(Click to enlarge)
