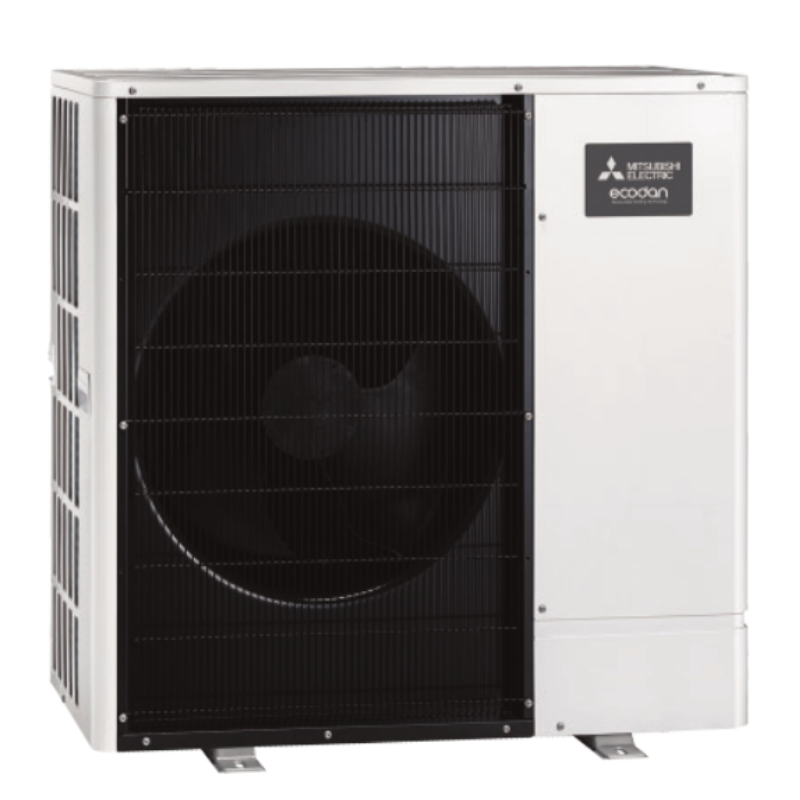

Mitsubishi Ecodan R290 6kW 1Ph Monobloc Air Source Heat Pump + Cylinder Package
R290 Pkg.
Log in or register for trade discounts!
Options:
BUY!
tell me more
This innovative model has a guaranteed operation range down to -25°C ambient temperature, while utilising the refrigerant properties of R290 to efficiently achieve high water temperatures up to 75°C and a low GWP (Global Warming Potential). Making the Ecodan R290 heat pump the perfect renewable alternative to conventional fossil fuel boilers. Available in single and three phase, standard and coastal protection models.
Sold as a standalone package, with a packaged 200L cylinder, or with a range of pre-plumbed cylinders. Select your preference using the options dropdown below the price. All come with the latest FTC7 controller included, along with a variety of components depending on the package selected (see below).
Key Features:
- A+++ heating efficiency (at 35ºC, range A+++ - D)
- Minimised energy consumption
- Ultra quiet noise levels
- Flexible product placement
- MELCloud enabled
- Remote control, monitoring, maintenance and technical support
- High water temperature of up to 75°C
- Ideal for energy storage
- Fully electric source of heating and hot water
- Zero carbon ready
Technical Information
Nominal capacity
6kW
Compressor type
Rolling piston type rotary
Refrigerant type
R290 (GWP 3)
Refrigerant vol. (Chargeless)
0.6kg
Nominal flow rate
17L/min
Minimum water volume
5L
Product Details
Product code
PUZ-WZ60VAA
Max flow temp
75°C
Operating range (Heating)
-25°C - + 24°C
Operating range (DHW)
-25°C - + 46°c
Operating range (Cooling)
+10°c - +46°c
Electrical supply
230V, 50Hz
Sound power level
53 dBA
Rec. pipe size
22mm
Product Dimensions
Height
1020mm
Width
1050mm
Depth
480mm
Net weight
89kg
MCS Listed SCOPs (with 200L Packaged Cylinder)
@35°C
4.39
@40°C
4.14
@45°C
3.9
@50°C
3.66
@55°C
3.43

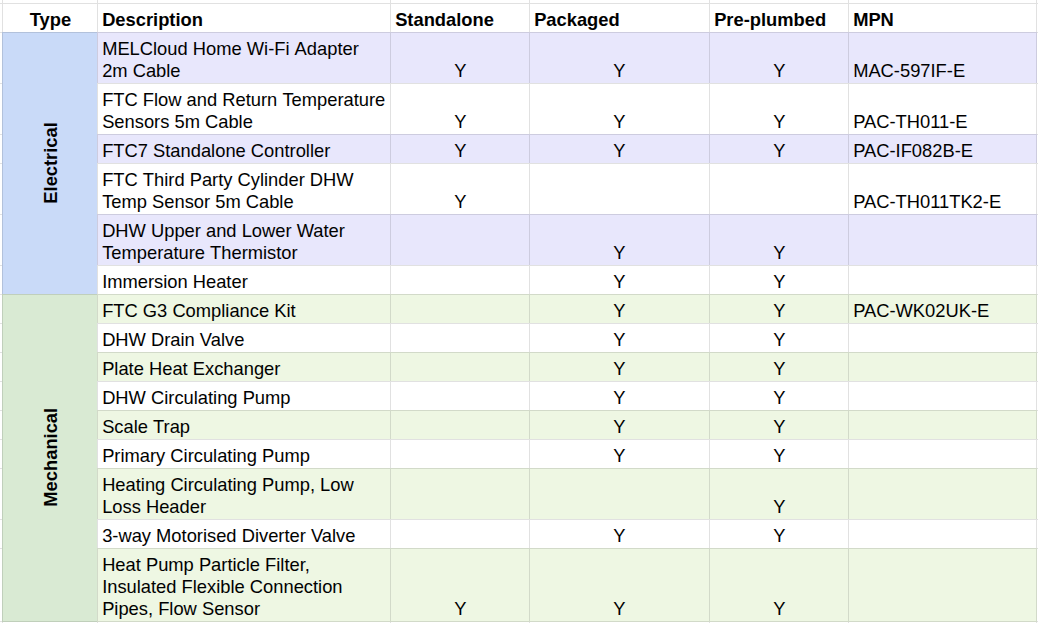

Included Components
(Click to enlarge)
